4. Optimization Results

After optimization completes, a summary markdown file named pawTuningSummary will be generated and opened automatically. Install the Markdown plugin to get better user experience, and enable hyperlinks in the markdown file.

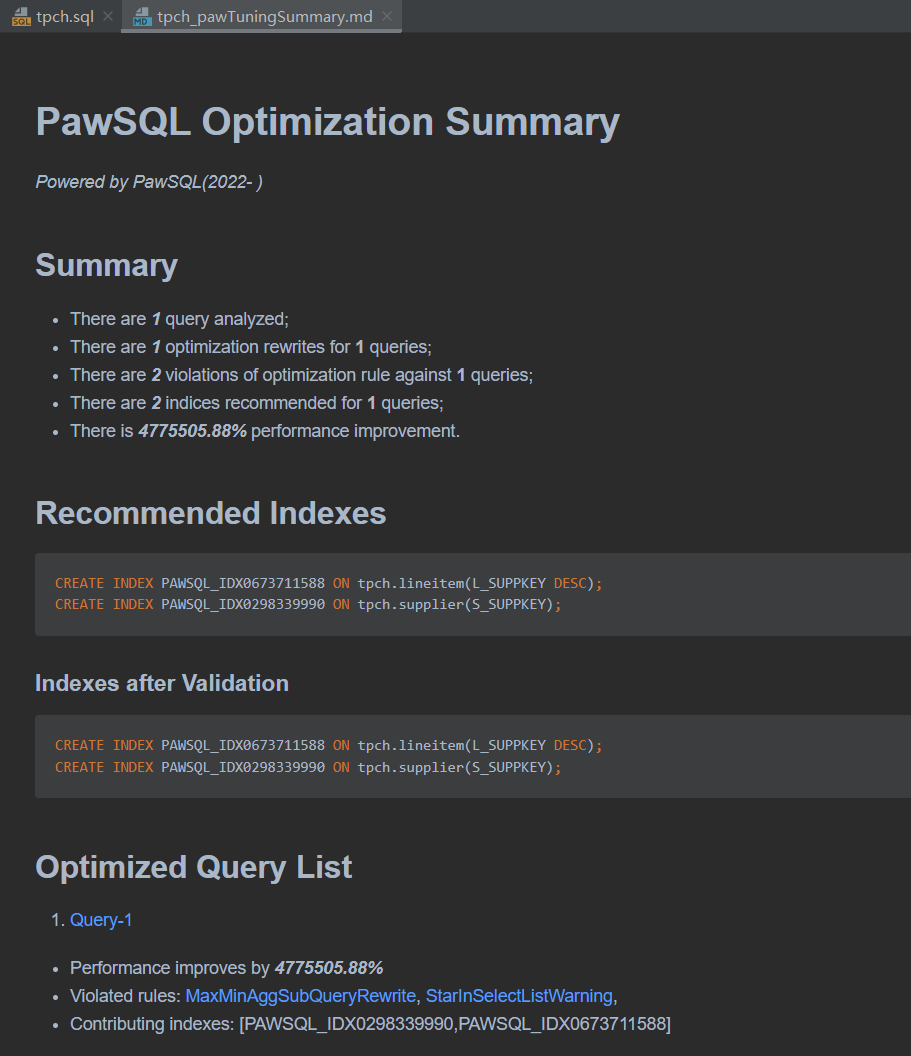

4.1 Optimization Summary​

The pawTuningSummary file contains:

  1. Optimization overview
  2. Recommended indexes
  3. List of optimized SQL

4.2 SQL Tuning Details​

Click on a SQL name in the summary file to open its tuning details:

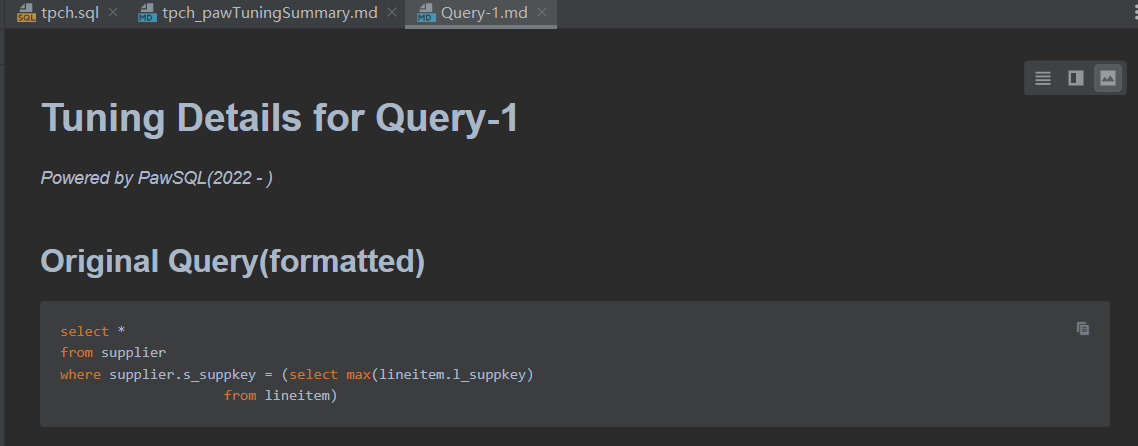

  1. Original SQL

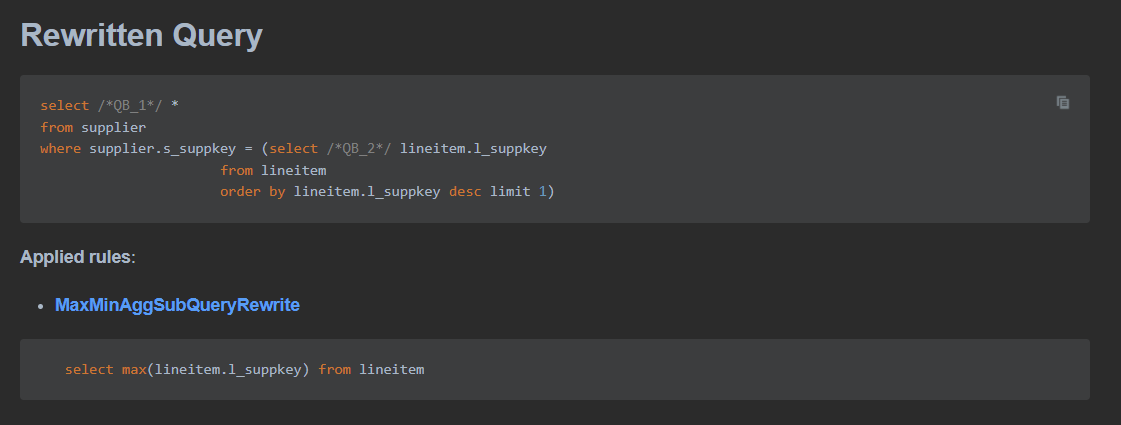

  1. Rewrite Optimization

    • Rewritten SQL
    • Applied rewrite strategies
    • SQL fragments related to each rewrite

  1. Auditing Rule violations

    • Violated rule (click to see the elaboration of rule)
    • Problematic SQL fragments related to violation

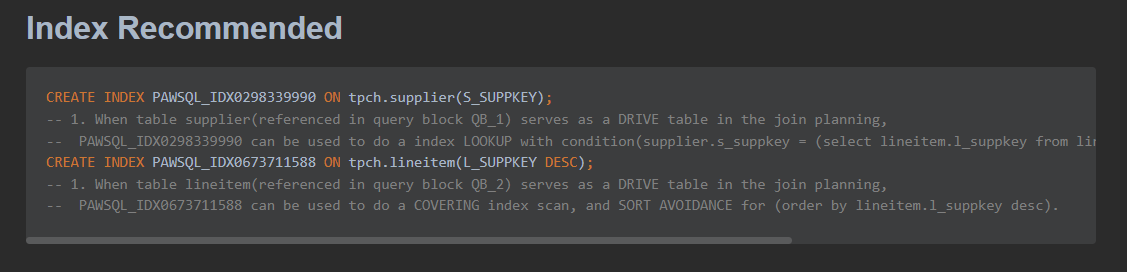

  1. Index Recommendations

    • Recommended indexes
    • How recommended indexes help performance

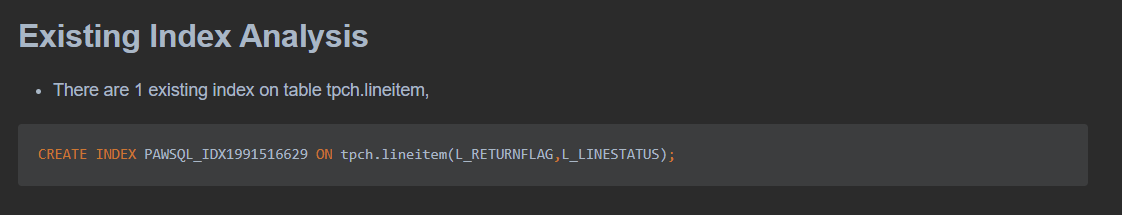

  1. Existing Index Analysis

    • Existing Indexes on each table
    • How existing indexes help query execution
    • Redundant indexes
    • Warning if num of indexes on single table exceeds the threshold

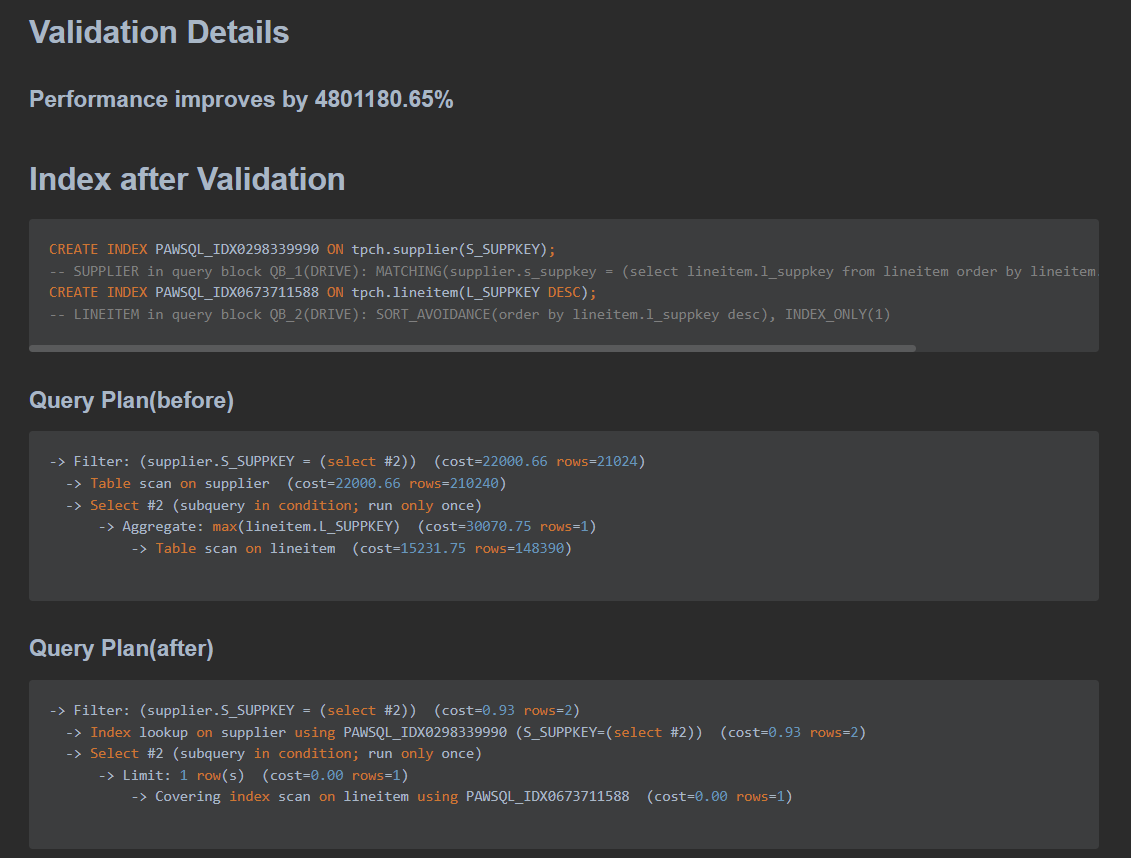

  1. Performance Validation

    • Performance improvement
    • Applied recommended indexes
    • Execution plans before/after optimization
